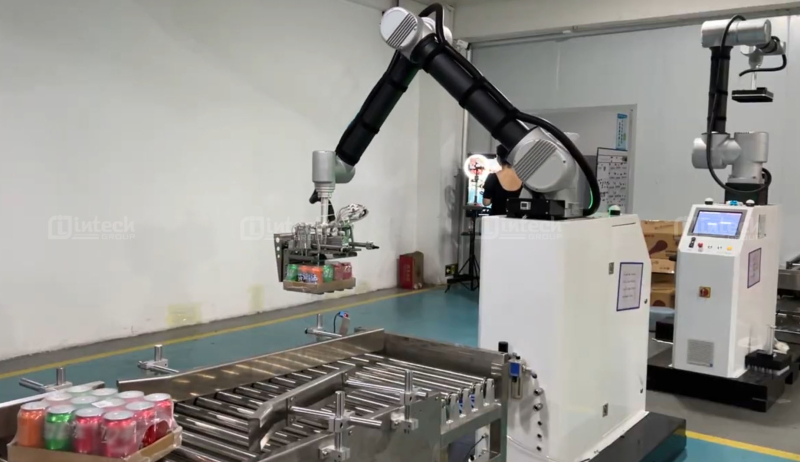

ITR-GD40 Robotic Loading Station

Robotics

Mục lục

Structure of the ITR-GD40 robot loading station

The ITR-MD40 Pro robot loading station is optimally designed for packaging and bagging operations in modern production environments. The structure includes the following main components:

Collaborative Robot (Cobot)

Using a robot to easily stack heavy-duty goods, the world's leading product, helps increase stacking efficiency, reduce labor costs and ensure safety during operation.

Base Frame & Support Structure

The base structure is designed to be mobile, integrating a 7th Axis Lifting Column, convenient for installation, moving and reconfiguring the production line, suitable for multi-level stacking applications.

End-Effector/Gripper

Compact design, simple structure, helps reduce the load on the robot arm and increase operating speed. In addition, the end actuator is equipped with a large suction force with an effective anti-drop mechanism. Moreover, the collaborative stacking robot is suitable for picking up cartons or soft packaging.

Mechanical Positioning System

Using a minimalist mechanical positioning system ensures the accuracy of placing goods and minimizes errors during operation.

Operation Interface

- Control interface includes: 12.1-inch capacitive touch screen, 7-inch integrated computer and WSC Palletizing System V1.0 operating software

- Electric Control Cabinet

- Integrated control cabinet, low power consumption, high hardware configuration, easy maintenance, ensuring quality and stability.

The application of the stacking robot system not only improves production efficiency but also ensures a high level of safety for workers. By automating the operations of lifting, picking and stacking heavy goods, robots help reduce the risk of work accidents, limit exposure to dust, toxic environments as well as heavy, repetitive work.
