I. General description of the control system:
- An important part of any robot system is the connection and control technology, we provide an open, user-friendly and customizable control system that is easy and convenient;
- We can design a system with control features: Remote control, from the control center, automatic system monitoring, statistics and real-time data aggregation of the system's operation, automated error warning,...;
- The control system collects data about the performance of each robot and other actuators in the system.This process provides data that allows operators and maintenance personnel to make the necessary adjustments to maintain optimal performance and to provide timely maintenance to maintain system longevity;

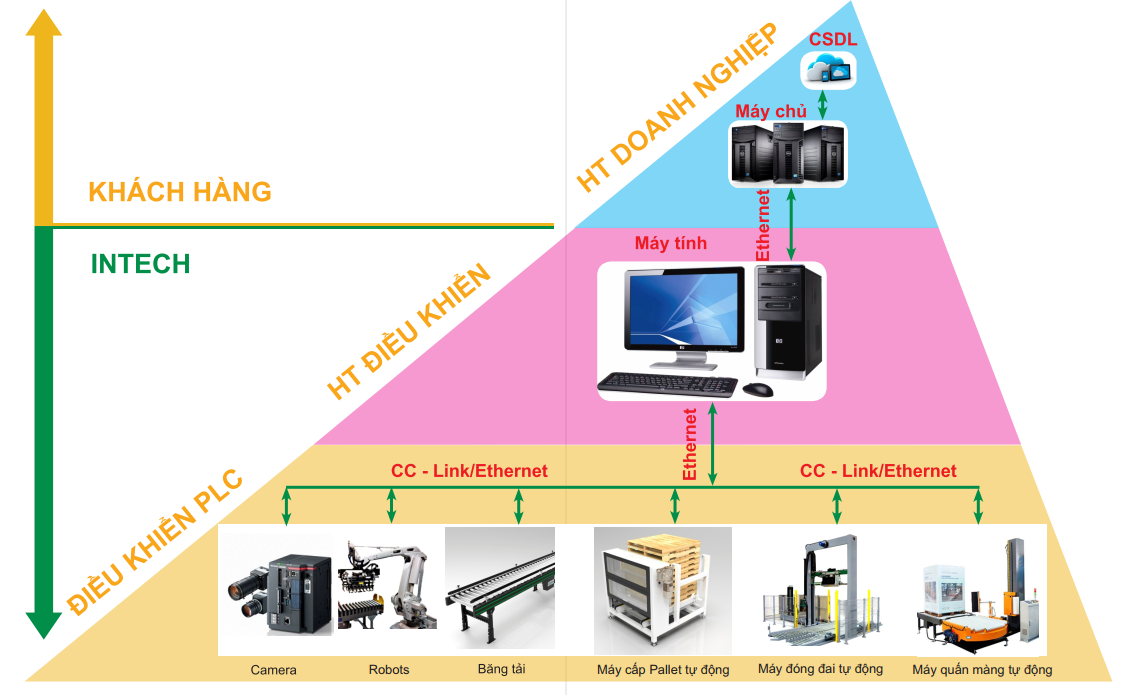

II.Main structure of full control system:
1. Customer data storage system:
- Data storage server;
- Big data storage and processing space;
- Internal communication system;
2. System control server and system internal communication module;
3. PLC control system includes the following actuators:
- Camera surveillance system;
- Robots carry out loading and unloading operations;
- Product-level active conveyors;
- Automated pallet feeder;
- Automated palletizing and wrapping film feeding machine;
- Automated film wrapping machine;
- Automated strapping machine;
- ...depending on the needs of the customer that a system may have to the above or missing components, in addition we can actively expand according to customer requirements!
Please contact us immediately for advice on connecting and controlling the loading and unloading robot system and smart factory solutions!
See more:
- Automated loading and unloading robot system
- Options of pallet loading system
.PNG)
