With a structure consisting of many filtering stages and specialized supporting equipment, this line is widely used in factories, bottled water production facilities and households with a need to use quality clean water. In this article, let's explore with Intech Group in detail the structure, operating principles and operating process of the most advanced pure water filtration line today.

What is a RO water purifier line?

The RO water purifier line is a water treatment system that applies reverse osmosis technology to remove up to 99.9% of bacteria, viruses, heavy metals and toxic impurities in the water source. With outstanding filtering ability, this system helps create a pure water source that meets the standards for use in daily life, medicine, food production and bottled drinking water.

The system can handle a variety of water sources such as: tap water, well water, groundwater or even heavily polluted water sources, providing clean water to help protect users' health. With flexible capacity, from small scale for households to large scale for factories, RO water filtration lines are increasingly widely applied in life and production, helping to ensure clean, pure and safe water sources.

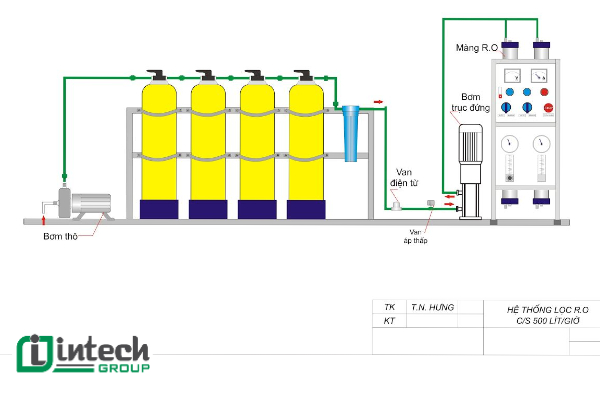

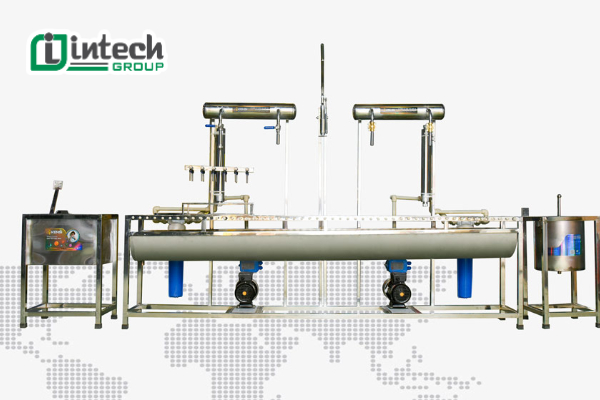

RO water purifier chain structure

RO water purifier chain is a system that integrates many modern filtering devices, designed to create a pure water source that meets the quality standards of the Ministry of Health and ensures safety for users. This system includes the following components:

Multi-function filter column: Made from high-strength Composite material, this filter column has the ability to remove dirt, organic compounds, alum and heavy metals.

Softening filter column (treatment column): Also made of Composite material, this filter column helps soften water by ion exchange method, bringing sweet and easy-to-drink taste to pure water.

Fine filter column: Removes small residues remaining after water has passed through the two filter columns above, ensuring clean water before entering the RO membrane.

Intermediate pump: Used to push water from the tank through the filter system, creating pressure for the next steps.

Intermediate filter: Attached between the intermediate pump and the RO pump, helps filter coarse sediment and stabilize water flow.

RO pump: Creates high pressure to push water through the RO filter membrane, ensuring reverse osmosis efficiency.

RO filter membrane: Is a core component in the chain, capable of removing up to 99.9% of bacteria, viruses, heavy metals and harmful ions in water.

Ozone machine and UV disinfection lamp: Sterilizes, removes toxins and harmful substances remaining in water, improving safety.

Boiling pump and filling conveyor: After the water reaches the purity standard, the system will automatically fill the tank or bottle through a specialized pump and conveyor.

Control system, electric float, electrical cabinet: Automatically controls the filtration process, ensuring stable operation, saving labor and effective monitoring.

With scientific structure and modern filtering technology, RO water purifier line not only helps to treat water source effectively but also provides pure and safe drinking water for all needs from daily life to production.

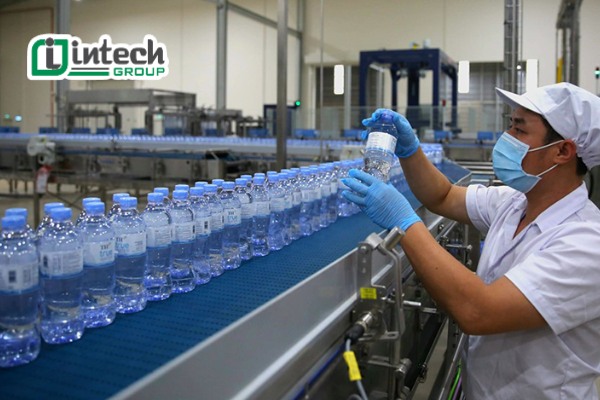

Benefits of using RO water purifier lines

Pure water produced from RO water purifier lines can remove up to 99.9% of bacteria, heavy metals and harmful impurities, ensuring an absolutely safe water source for users. Using pure water brings many benefits such as:

- Direct use for drinking: Helps provide enough water for the body, supports metabolism and improves overall health.

- Food processing, beverage preparation: Clean water ensures the natural flavor of the dish is preserved, while eliminating the risk of bacterial contamination from water.

- Child care: With a weak digestive system, children really need to use pure water to mix milk, rinse bottles, wash dishes, ... to ensure absolute safety.

- Applications in medicine and production: Pure water from RO filtration lines is widely used in hospitals, laboratories and food, cosmetic and pharmaceutical processing factories, where high requirements for cleanliness and sterility are required.

Operating Principle of RO Water Purifier Line

RO water purifier lines are trusted by businesses, factories and pure water production facilities thanks to their effective cleaning ability and ensuring hygiene and safety according to standards. The operation of the line is carried out in the following 4-step process:

Step 1: Raw filter system

The input water will pass through raw filter columns containing materials such as activated carbon, quartz sand and ion exchange beads to remove impurities, alum, heavy metals and strange odors in the water.

Step 2: RO filter system (Reverse Osmosis)

This step uses an RO filter membrane with super small gaps (0.0001 micron) to completely remove bacteria, viruses, heavy metal ions and toxic substances, ensuring high purity of water.

Step 3: Disinfection and microbiological treatment system

After being filtered through the RO membrane, the water will continue to be treated with an ozone machine and ultraviolet (UV) lamp to kill any remaining bacteria, ensuring absolute safety for users.

Step 4: Filling and bottling system

The purified water after treatment will be automatically filled into bottles and jars through the sterile filling system. This process ensures that there is no bacteria in the air, maintaining the purity of the product.

With a professional, closed and safe operating process, the RO water purifier line is the optimal solution to help businesses produce drinking water that meets standards and meets the increasing demand for consumption.
