Dây chuyền này không chỉ giúp chuẩn hóa chất lượng pallet mà còn đáp ứng nhanh chóng nhu cầu đóng gói, vận chuyển hàng hóa trong thời đại công nghiệp 4.0. Trong bài viết dưới đây, Intech Group sẽ giúp bạn tìm hiểu chi tiết về đặc trưng và quy trình của hệ thống sản xuất pallet gỗ tự động.

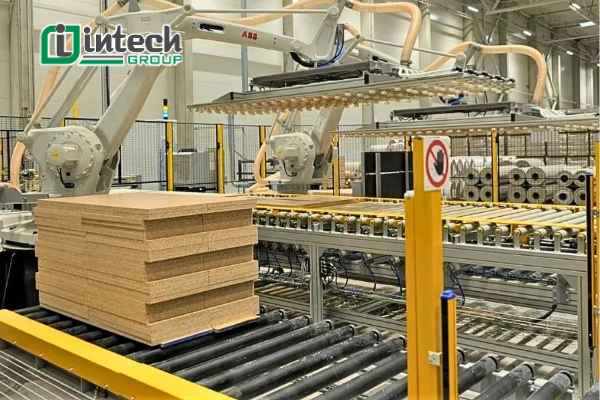

Characteristics of the wooden pallet production line

1. Suitable for many international pallet standards

The wooden pallet production line is designed to produce a variety of pallets according to standards: US, European, Vietnamese National Standards, helping businesses easily meet the needs of packaging and exporting goods to many different markets.

2. Integrated automatic rotation and loading system

The wooden pallet production line is equipped with a blank rotation device and an automatic loading and unloading system, ensuring a smooth, seamless operation process, compact design, and space saving. In particular, it is possible to integrate an automatic stacking system, performing nailing and stacking operations simultaneously in just one cycle

3. Smart control system, easy to operate

The production line is fully automatic, controlled by an imported PLC with a friendly touch screen interface, easy to operate. The nailing position is set precisely, ensuring high accuracy and minimizing errors, helping businesses save time, costs and increase productivity.

4. Flexible product size

The production line can be flexibly adjusted according to production requirements. The size of wooden pallets can be customized within a range of up to 1.3m x 1.3m, suitable for many industries that need to pack goods in different sizes.

Features of wooden pallet production line

1. Suitable for many international pallet standards

The wooden pallet production line is designed to produce a variety of pallets according to standards: American, European, Vietnamese National Standards, helping businesses easily meet the needs of packaging and exporting goods to many different markets.

2. Integrated automatic rotation and loading system

The wooden pallet production line is equipped with blank rotation equipment and automatic loading and unloading system, ensuring a smooth, seamless operation process, compact design, saving space. In particular, it can integrate an automatic stacking system, performing nailing and stacking operations simultaneously in just one cycle

3. Smart control system, easy to operate

The line is fully automatic, controlled by imported PLC with a friendly touch screen interface, easy to operate. The nailing position is precisely set, ensuring high accuracy and minimizing errors, helping businesses save time, costs and improve productivity.

4. Flexible product size

The line can be flexibly adjusted according to production requirements. The size of wooden pallets can be customized within a range of up to 1.3m x 1.3m, suitable for many industries that need to pack goods in different sizes.

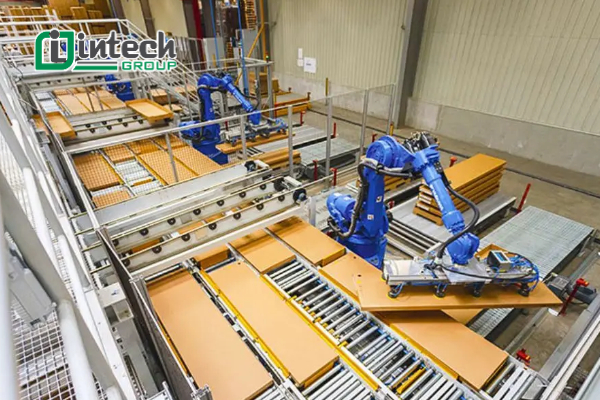

Operating principle of wooden pallet production line

The wooden pallet production line operates according to a closed automation mechanism, combining many modern equipment to ensure the production process is continuous, accurate and efficient. The main equipment includes: automatic nailing machine, label printing machine, rotating machine, turntable and pallet making machine.

The process begins by feeding the wooden blanks into the automatic nailing machine. Here, the wooden bars are fixed and connected together with nails according to the established size and standards. After nailing is completed, the pallet is transferred to the next processing stage through the automatic blank rotation device, which helps to reorient the product before transferring to the turntable.

From the turntable, the pallet is brought to the pallet making machine, the pallet is placed horizontally and after each stacking, the pallet will be rotated 90 degrees and arranged in a staggered manner. This method helps the pallets not have a back brace, ensuring a secure stacking, saving space and convenient for storage or transportation.

The entire system is designed to collect finished pallets onto a height-adjustable lifting platform. Thanks to that, forklifts can easily receive pallets without having to do manual operations many times.

Thanks to the application of PLC control technology and intelligent operating mechanism, the wooden pallet production line not only increases productivity but also helps businesses save factory space, optimize operating costs and quickly meet mass production needs.

Process of wooden pallet production line

In a modern wooden pallet production line, the production process is standardized, automating many stages to ensure stable and consistent output quality that meets usage and export standards. The following are detailed steps:

1. Import raw wood with standard length of 1.2m

Commonly used input materials are acacia (melaleuca), rubber wood or pine. In which, melaleuca is an abundant forest product in Vietnam, often prioritized for cost optimization.

Pine wood is mainly imported, suitable for high-end export orders, wooden bars are often 1.2m or longer for easy processing and cutting according to design size.

2. Sawing wood

Round wood is fed into a high-capacity sawing machine to cut into wooden bars of suitable size. Sawing size depends on the required pallet design.

3. Drying and sterilization, termite prevention

Wooden pallets used for export or long-term storage must undergo drying and sterilization. The wood is put into an industrial dryer and stacked in stacks with ventilation slots. The HT (Heat Treatment) sterilization drying method or fumigation can be applied.

4. Smoothing the wooden bars

After drying, the wooden bars are planed flat to remove the rough wood. Depending on the requirements, 1, 3 or all 4 sides can be planed. High-end orders often require careful planing to ensure aesthetics and avoid scratching the goods during storage or transportation.

5. Cutting the wood according to the design size

The wooden bars are cut precisely according to the pallet design drawing. Workers or the machine system will carefully check the size and quality of the wooden bars.

6. Packing the finished pallet

The wooden bars are assembled and fixed with industrial twist nails, making the pallet sturdy during use. Standard pallets usually consist of crossbars (top), crossbars (load-bearing, underneath) and bottom bars. This step is performed by an automatic nailing machine, which helps increase productivity and accuracy.

7. Finished product storage

After completion, wooden pallets will be stacked and brought to the finished product warehouse. Here, pallets can be printed with logos, barcodes or batch codes (if required). The storage process ensures that pallets are not warped, moldy and are always ready for delivery to customers or for export.

Types of machinery used in wooden pallet production lines

Equipping the right machinery plays a key role in ensuring efficiency, quality and accuracy in each stage. Below are the common equipment in a wooden pallet production line:Types of machinery used in wooden pallet production lines
Equipping the right machinery plays a key role in ensuring efficiency, quality and accuracy in each stage. Below are the common equipment in a wooden pallet production line:

- Wood saw: Used to cut wood into bars, panels or blocks of standard size, serving to create pallet parts. Common types include sliding table saws, angle saws and pallet bar saws.

- Wood planer: Helps smooth the wood surface, remove defects and ensure the necessary smoothness, meeting the technical and aesthetic requirements of wooden pallets.

- Milling machine: Used to create grooves, mortises, joints or complex decorative lines on wooden parts.

- Sanding machine: Is the step to finish the surface after planing or milling, helping the wood achieve a high gloss, improving the quality of the finished product.

- Pallet nailing machine: Used to connect pallet parts with nails or screws. Depending on the production scale, businesses can choose manual, semi-automatic or fully automatic nailing machines.

- Wooden pallet press: Applied to the production of wooden pallets pressed from sawdust, wood chips or wood scraps combined with hot glue, a material-saving and environmentally friendly solution.

In addition to the main machines, the production line also has some auxiliary equipment to complete the production process:
- Wood chipper and wood crusher: Converts wood chips, branches, waste wood into wood chips or sawdust as input materials for pressed wood pallets.

- Wood dryer: Ensures the wood moisture level meets the standard, helping the finished pallet to have high durability and anti-warping.

- Glue mixer: Mixes specialized glue with sawdust or wood chips to prepare raw materials for the press.

- Edge banding machine: Increases the durability and aesthetics of the pallet edges.

- Conveyor system: Automates the process of transferring wood between stages, reducing manual labor and increasing productivity.

- Pallet loading and unloading robot: An automated solution for product loading and unloading, especially useful in large-scale factories.

Choosing the right type of machinery suitable for the production model not only helps to increase productivity, ensure the quality of finished pallets but also saves operating costs and labor. In the context of the industry increasingly moving towards automation, investing in a modern, synchronous wooden pallet production line will be a strategic step to help businesses improve their competitiveness and better meet the strict requirements of the market.

If your business is looking into automated production lines, conveyors, and loading robots, please contact Intech Group for advice and support.
